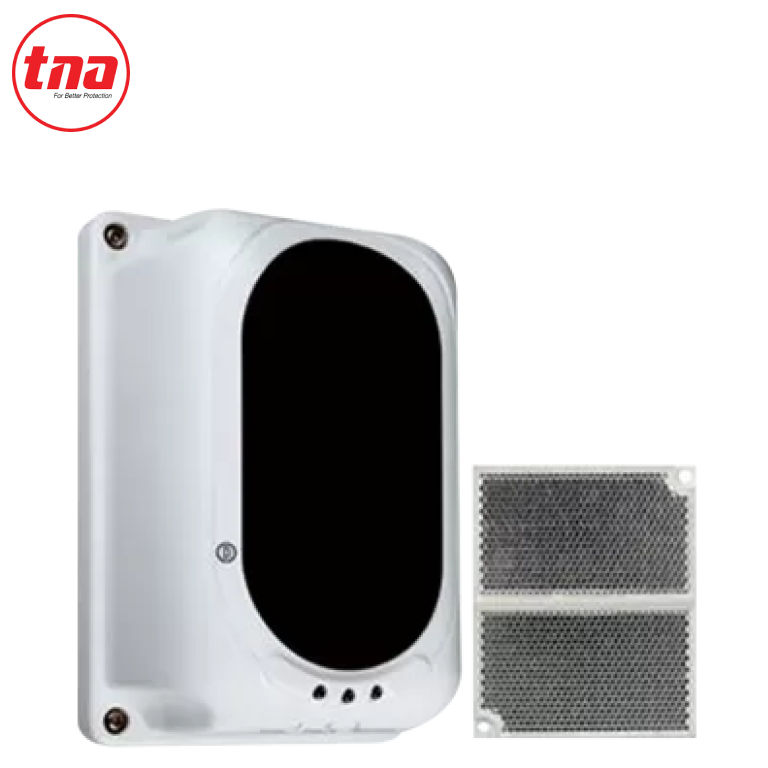

TNA TXC7130 Conventional Reflective Beam Detector 8-100 m

Be the first to review this product

Specifications:

- Standard Compliance: EN 54-12:2015 (LPCB / CE-CPR Certified)

- Power Rating: 20V to 28V DC

- Current Consumption: Standby: 23mA, Commissioning: 56mA, Alarm: 33mA

- Beam Type Reflective: Infrared with Laser Pointer

- Alignment Guide: Laser Beam & Nixie Tube Digital Display

- LED Indicators: Red (Fire), Yellow (Fault), Green (Alignment)

- Material / Color: ABS Plastic / White

- Dimensions: 190.87mm (L) × 126.87mm (W) × 91.96mm (H)

- Weight: 0.13 kg (Detector Only), 440g (With Base)

- Operating Temperature: -10°C to +50°C

- Humidity Range: 0% to 95% RH (Non-condensing)

- Ingress Protection: IP30 (Optional IP66 with glue seal – not EN54-12 approved)

Qty:

+ -

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Product Datasheet
Payment Info
Return & Replacements
Reviews
Contact Us

Description

The TXC7130 is a conventional single-ended reflective beam smoke detector designed for wide-area protection in large interior spaces. It integrates both transmitter and receiver in one housing and uses a reflector panel to return the IR beam. The device is certified to standard EN 54‑12 by LPCB.
It features a built-in laser pointer for alignment, a digital display for beam strength monitoring, and selectable sensitivity ranges (for example 2.6 dB, 3.8 dB or 5.8 dB) and beam path spans from 8 m up to 100 m.
It is especially suited to high-ceiling or open spaces like warehouses, exhibition halls, hotels, large storage areas, where conventional point detectors are less effective.

Key Features

Single-ended reflective beam infrared detection for wide-area coverage (8–100 m span)
Four selectable beam path ranges: 8-20 m, 20-40 m, 40-70 m, 70-100 m via encoder or DIP switches
Three sensitivity levels: 2.6 dB (high), 3.8 dB (medium), 5.8 dB (low) for tailored performance in specific conditions \
Built-in laser pointer and digital guide display for easy alignment and setup
Auto-compensation algorithm: monitors and adjusts for contamination, aging of transmitter/receiver, movement, dust, to maintain sensitivity over time
Fire and fault relay outputs (e.g., NO/NC contacts, rated for ~2 A @ 30 V DC)
Operating voltage: 20 – 28 V DC; typical current consumption: standby ~23 mA, alarm ~33 mA, commissioning ~56 mA
Certified to EN 54-12:2015 standard with LPCB certificate (Ref: 1330a-(cl-8))

Industrial Uses / Applications

Warehouses, high-bay storage areas
Exhibition halls, large open-plan retail spaces
Museums, hotel lobbies, leisure centres
Areas with high ceilings or difficult access for point detectors
