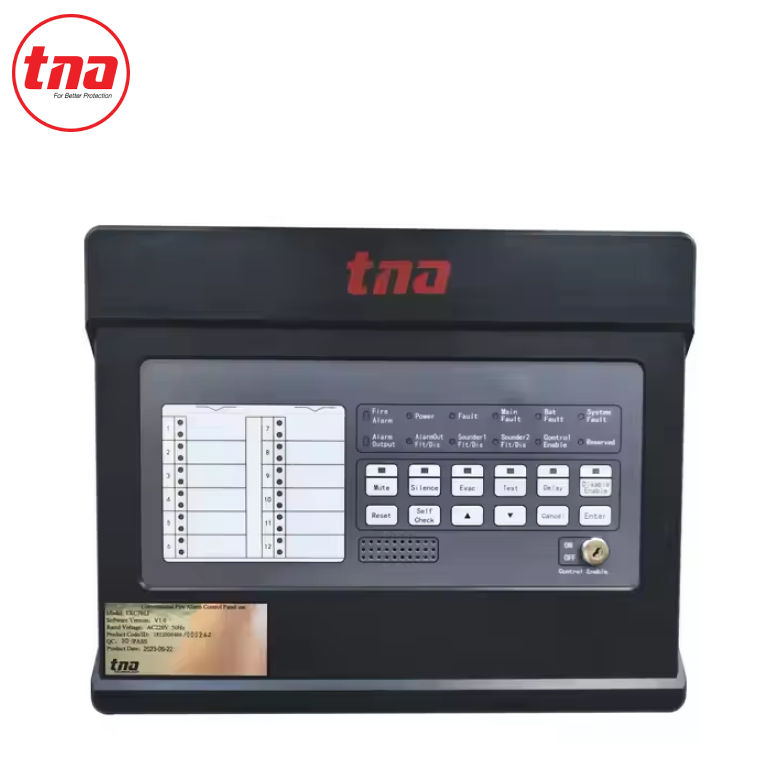

TNA TXC7002 2 Zone Conventional Fire Alarm Control Panel

Contact us For Quote
Specifications:

Input Voltage: AC 220V (Range: 187V ~ 242V), 50Hz

Main Circuit Current: 2.8A

Backup Battery: 12.8V, 4Ah

Zone Device Capacity: 30 Devices per Zone

Alarm Bell Output Current: 0.5A per Zone

Auxiliary Power Output: 2 Outputs (0.5A each)

Dimensions (L × W × H): 311mm × 60mm × 251mm

Weight: 1.5kg

Installation Holes: Horizontal: 270mm, Vertical: 215mm

Ingress Protection: IP30

Operating Temp / Humidity: 0°C ~ +40°C / ≤95% RH (Non-Condensing)

+ -

Description

The TXC7002 is a conventional fire alarm control panel designed for smaller‐scale fire detection systems. It supports two detection zones and is built for reliable operation in commercial applications. The unit includes a mains power supply with battery backup, zone inputs, alarm outputs and fault relays.

Key Features

  • Supports 2 fire alarm zones (model TXC7002) with capacity for approximately 30 devices per zone.

  • Alarm bell / sounder output current: 0.5 A per zone.

  • Auxiliary power outputs: 2 outputs each rated 0.5 A for additional devices.

  • Size: 311 mm × 60 mm × 251 mm (L × W × H), weight ~ 1.5 kg.

  • Operating environment: 0 °C to +40 °C, humidity ≤ 95% RH (non-condensing).

  • Ingress protection: IP30 for indoor installation.

Industrial Uses / Applications

  • Small offices and retail shops

  • Clinics, small schools or educational units

  • Residential apartments with basic fire detection

  • Small warehouses or service areas
