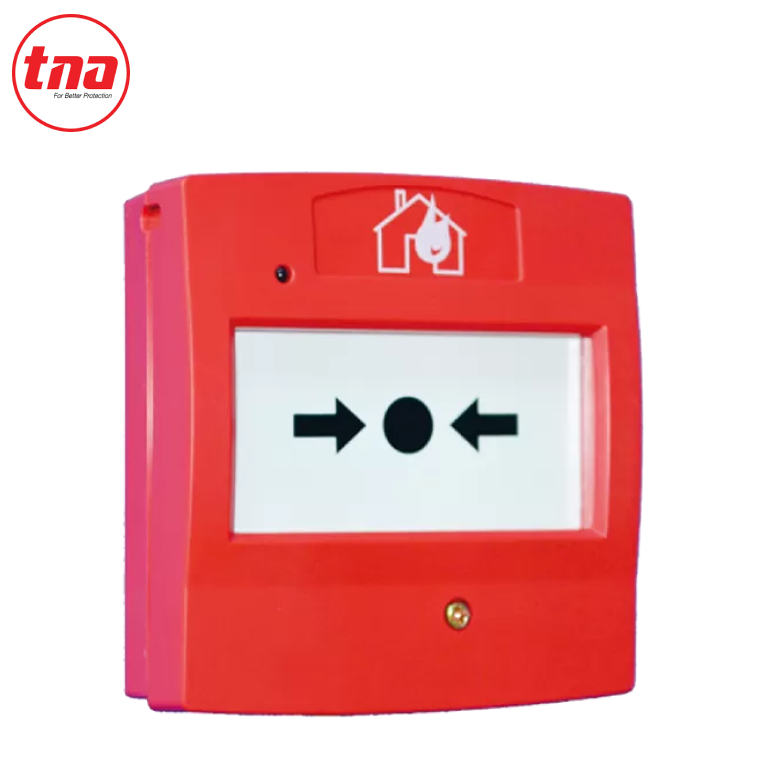

TNA TX7140 Intelligent Addressable Manual Call Point

Be the first to review this product

Specifications:

- Compliance: EN 54-11:2001 + A1:2005

- Certifications: LPCB / CE-CPR

- Input Voltage: 24VDC (Range: 16V – 28V)

- Current Consumption: Standby: 0.6 mA / Alarm: 1.8 mA

- Protocol / Addressing: T&A, Range: 1 to 254

- Indicator: Front-Facing LED (Steady On when pressed)

- Glass Type: Non-breakable (No hammer required)

- Material / Finish: Fireproof ABS / Red Glossy

- Mounting: Surface Mount, Type A (Indoor Use)

- Dimensions: 99.7 mm × 57 mm

- Weight: 145 g (with base) / 90 g (without base)

- Operating Temperature: –10 °C to +50 °C

- Ingress Protection: IP43

- Humidity Range: 0 – 95% RH (Non-condensing)

Qty:

+ -

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Product Datasheet
Payment Info
Return & Replacements
Reviews
Contact Us

Description

The TX7140 is an addressable (intelligent) manual call-point designed for fire alarm systems. It uses a micro-processor based design to provide unique addressing and full compatibility with intelligent fire panels.
The device features a non-breakable glass activation element (or hammerless press plate) and a clear LED indicator to aid location and status visibility.
It operates within the 16 V to 28 V DC range (nominal 24 V) and is compliant with the standard EN54‑11:2001 + A1:2005 for manual call-points.

Key Features

Addressable unit supporting digital addressing from 1 to 254 on compatible loop-systems.
Non-breakable glass or hammerless activation surface for safer operation.
LED indicator on front face: lights steady when activated, aiding location of an activated call point.
Very low standby current: approx 0.6 mA (24 V) and alarm current approx 1.8 mA.
Wide operating voltage range: 16 V to 28 V DC (nominal 24 V).
Dimensions approx. 89 mm × 93 mm × 35 mm; Weight ~102 g with base (~80 g without base).
Indoor use (Type A) with class EN54-11 listing, rated for –10 °C to +55 °C and up to 95 % RH non-condensing. Ingress protection approx IP43.

Industrial Uses / Applications

Manual fire-alarm activation points in offices, schools, commercial buildings
Conventional or intelligent fire alarm systems in corridors, lobbies, and public-access areas
Integration into addressable loops in medium to large installations
