Product Features:

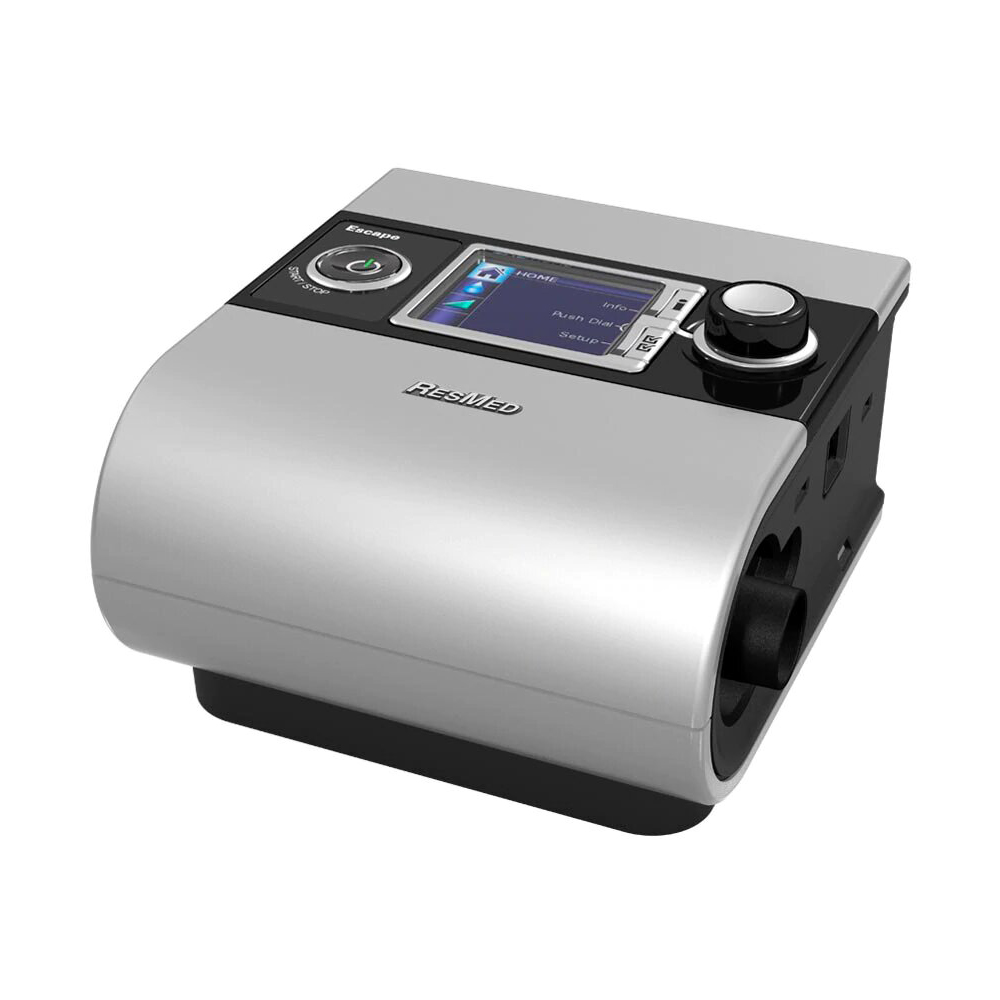

The S9 Escape is the entry level CPAP model in the S9 Series. Packed with technology, users can take advantage of EPR settings with Easy-Breathe and Climate Control humidification. It is a sleek, all-in-one system that is ideal for any nightstand. ResMed has incorporated Easy-Breathe Technology along with expiratory pressure relief (EPR) to make breathing through a CPAP feel more “natural”.
Product Specifications
- Pressure: 4 to 20 cm H2O (.2 increments)
- Ramp Time: 0 to 45 min. (5-min. increments)
- Starting Ramp Pressure: 4 to min pressure
- Dimensions: 6 in x 5.5 in x 3.25 in
- Bag Dimensions – Outside: 13.5 in x 12 in x 5.5 in
- Machine Weight: 1.79lbs
- Filters: Pollen or Hypoallergenic
- Sound Level: 26 dBA
- Operating Altitude: Sea level to 8500′ (2591 m)
- SlimLine Air Tubing: Flexible plastic, 1.83m, 15mm inner diameter
- Optional ClimateLine Tubing Length: 78 inches
- Optional ClimateLine MAX Tubing Length: 75 inches
- Housing Construction: Flame retardant thermoplastic
- Device Set-Up: Push Dial
- Available Languages: English (Default), French, Spanish, Portugese
- Humidification: Optional Integrated Heated Humidifier or Pass-over Humidifier
- DC Power: Only use DC Converter by ResMed for DC input or damage may occur.
- 90W Power Supply:
- Dimensions of Power Supply Only – Not including Cord or Plug: 5 1/2 inch (L) x 1 7/8 inch (W) x 1 1/4 inch (D)
- Weight of Power Supply, Cord & Plug: 1.29 Pounds
- Unit Input Range 100-240V, 50-60Hz,
- Nominal for Aircraft Use 110V, 400Hz
- Typical Power Consumption 70W (80VA)
- Maximum Power Consumption 110W (120VA)
European Voltage Usage: Yes, outlet adapters required
Data Storage Capacity:
- Display: 365 days summary data (up to 500 events per session.)
- SD Memory Card: 365 days summary data and 30 Days and 7 nights detailed data
Aircraft Use: These S9 devices comply with US FFC Part 15, Class B requirements if no external data cables are used.
Max Exposure Heat for Machine: Machine should not be exposed to heat greater than 140 degrees Fahrenheit
Required Settings: 1 Pressure Setting is Required
Unless directed otherwise, CPAP.com will leave this machine at its default settings of:
- EPR: Off
- Ramp: On
- Ramp Time: 20 Minutes
- Ramp Start: 4 cm H2O
