Mir 910610x Spirodoc Handheld Spirometer Portable Spirometry Plus Optional Oximetry

Be the first to review this product

Specifications:

- Brand: MIR (Medical International Research).

- Model: Spirodoc® (Spirometer + Oximeter).

- Product Code: 910610x.

- Main Body Size: 48 × 101 × 16 mm.

- Weight: ~99 g (with battery).

- Turbine Housing: 47 × 46 × 24 mm; Weight ~17 g.

- Power Supply: Rechargeable Lithium‑Ion 3.7 V, 1100 mAh.

- Battery Life: ~50 hours autonomy.

- Connector: micro USB type B.

- Display: LCD monochrome 160×80 pixels, 2.8″ touchscreen.

- Connectivity: USB 2.0, Bluetooth 2.1.

- Flow Sensor: Bi‑directional digital turbine.

- Flow Range: ±16 L/s.

- Volume Accuracy: ±2.5 % or 50 mL.

- Flow Accuracy: ±5 % or 200 mL/s.

- Dynamic Resistance: < 0.5 cmH2O/L/s.

- Temperature Sensor: Semiconductor (0–45 °C).

- Memory: Up to 10 000 tests stored.

Qty:

+ -

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Product Datasheet
Payment Info
Return & Replacements
Reviews
Contact Us

Description:

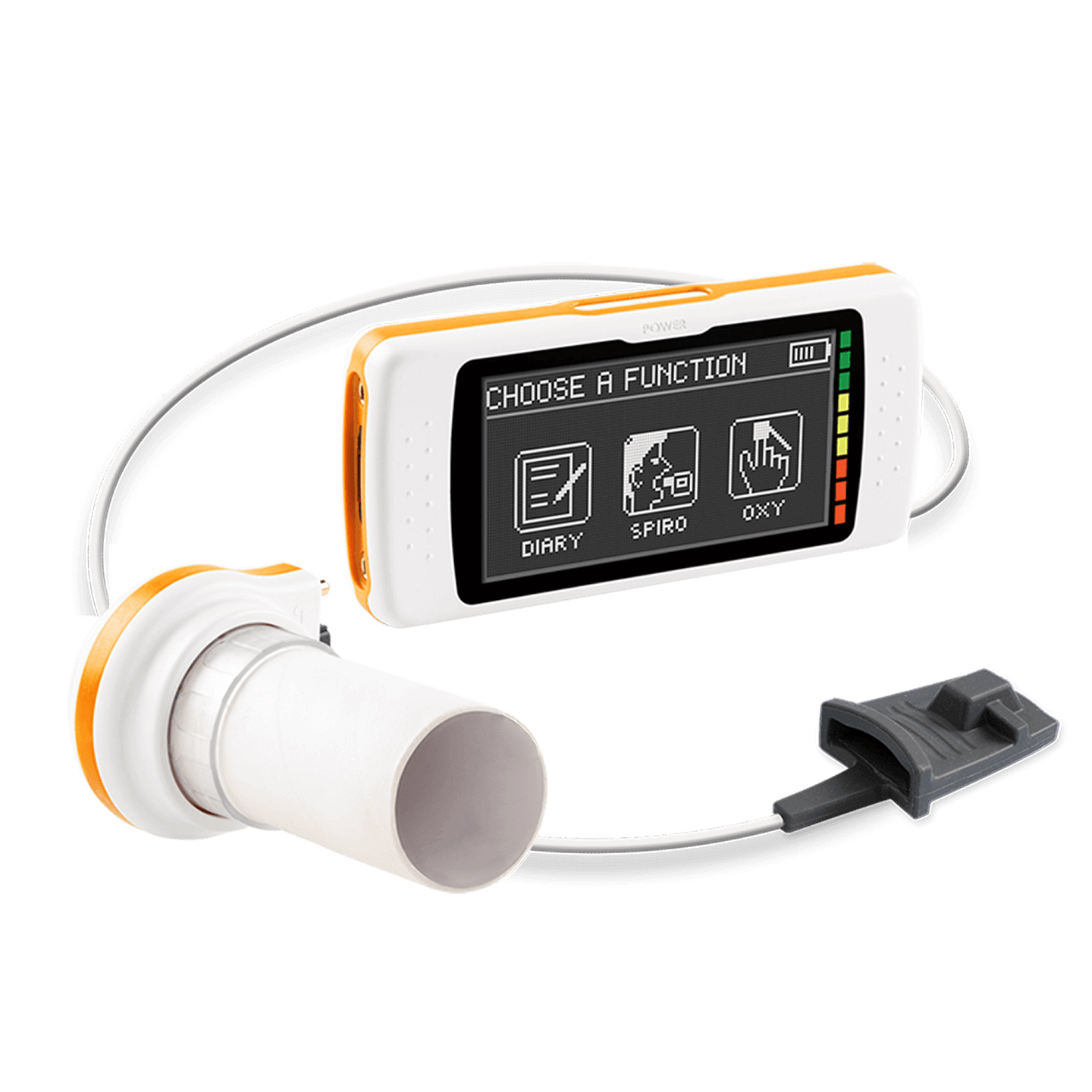

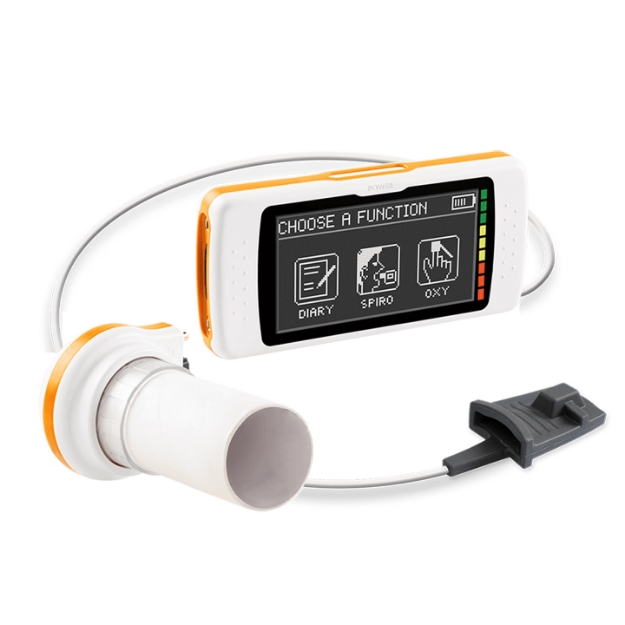

The Spirodoc is a high‑precision handheld, touchscreen spirometer with optional 3D oximetry designed for portable, stand‑alone, or PC‑connected pulmonary function testing. It supports standard spirometry, advanced tests such as 6MWT, sleep desaturation, and 24‑hour SpO₂ Holter readings, and real‑time data display both on device and computer via USB or Bluetooth. The removable optoelectronic reader and integrated accelerometer enable detailed physiological measurements with movement tracking and body‑position registration.

Key Features:

Multifunctional Portable Spirometer: Supports standard spirometry and optional oximetry for advanced tests.
Touchscreen Interface & Connectivity: Onboard storage with real-time displays; standalone or PC-connected via USB/Bluetooth.
Oximetry (Optional):
- Measurement Method: Red & infrared absorption
- SpO₂ Range: 0–99 %, Accuracy: ±2 % (70–99 %)
- Pulse Rate: 30–254 BPM, Accuracy: ±2 BPM/2 %
Advanced Tests & Monitoring:
- 6-Minute Walk Test (6MWT)
- Sleep desaturation test
- 24-hour SpO₂ Holter monitoring
- Body position registration during tests
Measured Respiratory Parameters (Spirometry): FVC, FEV1, FEV1/FVC%, PEF, FEV3, FEF25–75, VC, IVC, ERV, MVV, and more
Additional Features: Wide predicted value sets (GLI, ERS), EHR/EMR integration, detachable turbine head, supports disposable/reusable turbine options, compatible with MIR software (MIR Spiro, WinSpiro Pro)
Operating & Storage Conditions: Operating Temp +10–40 °C, Humidity 10–95 % RH, Storage Temp –20–60 °C

Industrial Uses / Applications:

Clinical pulmonary function testing in hospitals and respiratory clinics.
Rehabilitation monitoring (6MWT, cardiopulmonary response).
Sleep medicine and desaturation analysis.
Home respiratory monitoring with PC connectivity and telehealth integration.
