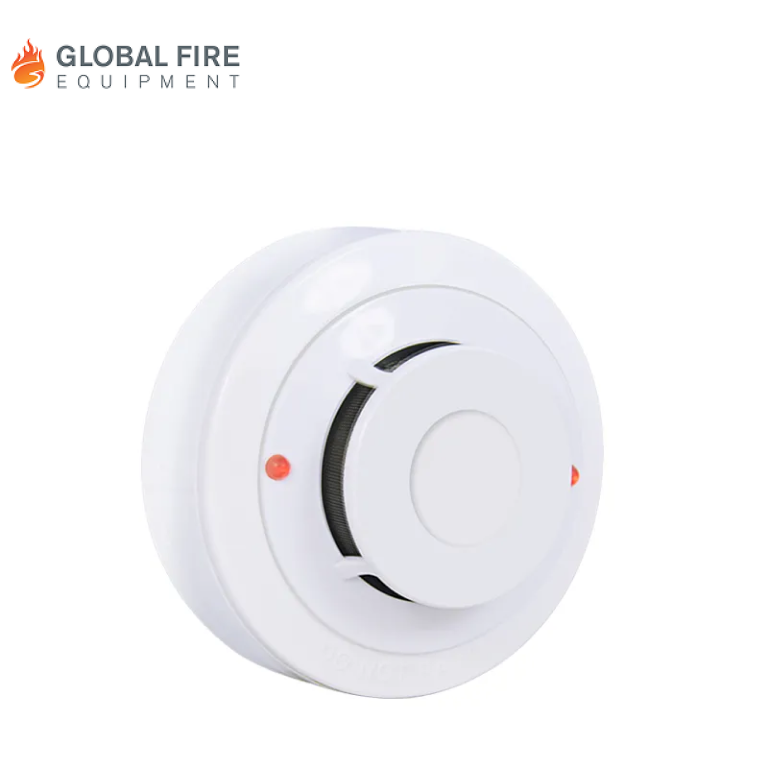

Global Fire AW CSD311 Conventional Photoelectric Smoke Detector

Be the first to review this product

PKR 1575.00

Specifications:

- Model Number: AW-CSD311

- Detection Method: Photoelectric

- Sensor Type: Optical Sensing Chamber

- Power Supply Voltage: 9 – 32 VDC (non-polarized)

- Standby Current: ≤100μA @24VDC

- Alarm Current (LED On): ≤15mA @24VDC (with 1K Ohm resistance)

- Operating Temperature Range: -10°C to 49°C (14°F to 120°F)

- Humidity Range: 10% – 93% RH (non-condensing)

- Smoke Sensitivity: 1.06 ± 0.26% FT

- Height (with base): 48.2 mm / 2.2 in

- Diameter: 103 mm / 4.0 in

- Weight: 155 g / 5.5 oz

- Mounting Type: Ceiling

- Certifications: CE

- Origin: Guangdong, China

- Price mentioned per piece

Qty:

+ -

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Payment Info
Return & Replacements
Reviews
Contact Us

Description

The AW-CSD311 is a photo-electric (also called optical) smoke detector designed for open-area protection in conventional fire alarm systems. It uses a state-of-the-art optical sensing chamber to detect the presence of smoke particles early. It is compatible with most conventional fire alarm control panels, and offers features such as 360° visible LED indication, remote LED output, and non-polarised input for ease of installation. Typical application areas include offices, bedrooms, hotels, archives, and other spaces where early smoke detection is needed.

Key Features

Optical (photo-electric) sensing chamber for early detection of smouldering fires.
Wide operating voltage range: 9 – 28 V DC (non-polarised input) allowing for flexible wiring.
Very low standby current (≤100 µA @ 24 V DC) minimizing system power consumption.
Maximum alarm current: ≤15 mA @ 24 V DC (plus the LED on) under typical conditions.
Dual red LEDs provide 360° visible indication; in standby mode the LEDs flash every ~6 seconds, and latch on in an alarm condition.
Remote LED indicator output (2-wire) for remote visual signalling.
Metal shield inside the detector chamber for improved electromagnetic interference resistance.
Operating temperature range: –10 °C to +50 °C (14 °F to 122 °F) and relative humidity up to ≤93% RH non-condensing.

Industrial Uses / Applications

Office buildings, hotels & guesthouses
Educational facilities (classrooms, libraries, archives)
Residential buildings, apartments
Commercial retail spaces
Areas with electrical equipment and cable trays where early smoke detection is important
General open indoor areas where smouldering fires are likely
