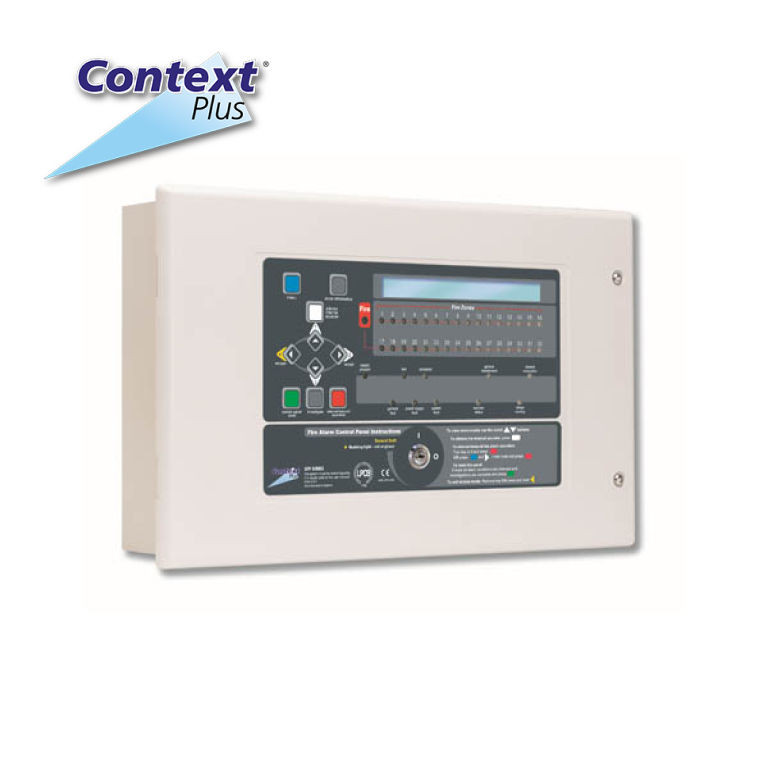

Context XFP502 32 Zone Networkable Addressable Control Panel

Be the first to review this product

PKR 315000.00

Specifications:

- Protocol: C-TEC CAST

- Mains Supply: 230V AC, 50/60Hz

- Rated Current: Max. 680mA

- Internal PSU: 27V DC nominal, 3A max @ 230V AC

- Quiescent Current: 100mA (2 unloaded loops)

- Battery: 2 x 12V 7Ah VRLA (in series)

- Loop Drivers: 2

- Loop Output: Max. 500mA @ 40V; Max. 1km loop length; 255 devices/loop

- Sounder Circuits: 2 conventional, 500m max length each

- Sounder Output: Max. 400mA

- EOL Resistor: 6.8kΩ, 0.25W (Blue-Grey-Red-Gold)

- Material: Metal

- IP Rating: TBC

- Weight: 4.5kg (excluding batteries)

- Operating Conditions: -5°C to +40°C; Max. 95% RH

- Relays:

3 x Programmable (via C&Es)

1 x Fault Relay (active = no faults)

SPCO, 1A @ 30V DC max

- Display/Indicators:

2x40 backlit LCD

32 Zonal LEDs

Fire, Fault, Pre-Alarm, Test, Disablement, etc.

- Connections: Max conductor size 1mm²

- Expansion:

Optional AFP711 card for RS485 networking

Up to 8 panels/repeaters, 1km (network), 500m (repeater)

- Dimensions:

Base: 410mm (W) x 250mm (H) x 80mm (D)

Lid: 439mm (W) x 274mm (H) x 7mm (D)

- Aux Power Output: 24V DC (19.5V–28V), 100mA max, resettable fuse protected

- Aux Inputs: 2 programmable (trigger to 0V), 27V max, non-latching

- PC Connection: RS232 via Molex (XFP507 kit); no printer support

- Price mentioned per piece

Qty:

+ -

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Product Datasheet
Payment Info
Return & Replacements
Reviews
Contact Us

Description

The XFP502 / X / CON series is a networkable, addressable fire alarm control panel with two loops supporting up to 32 zones. It uses either the XP95 / Discovery protocol or C-TEC’s own CAST protocol depending on variant. It is LPCB / EN54-2 / EN54-4 certified (when used with matching options). The panel is housed in a metal enclosure, comes with integrated power supply, control keypad, and diagnostics interface. It supports networking of multiple panels or repeaters via RS-485, and has programmable relays, conventional sounder circuits, inputs, and outputs.

Key Features

• Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
• Compatibility with Context Plus addressable detectors and devices.
• Two independently programmable conventional sounder circuits.
• Two programmable inputs.
• A fault output relay and three programmable relay outputs with voltage free changeover contacts.
• A selection of zone dependency/coincidence functions.
• A day/night (building occupied/unoccupied) function.
• An investigation delay period function.
• Phased evacuation facility.
• An alarm counter that records how many times the panel has been in alarm state.
• Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
• An integral EN54-4/A2 switch mode power supply.
• Adjustable contamination levels.
• Earth fault monitoring.
• Combined keypad / keyswitch entry to Access Levels 2 and 3.
• 999 event monitoring.
• An intuitive Windows based upload-download PC program.
• Optional flush-mounting bezel and glazed stainless steel enclosure also available.
• Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.

Industrial Uses / Applications

Commercial buildings, offices, retail complexes
Hotels, hospitals, educational institutions
Medium to large industrial & manufacturing premises
Multi-storey residential blocks
System expansions where multiple panels must interoperate
Any scenario needing scalable and addressable fire detection control
