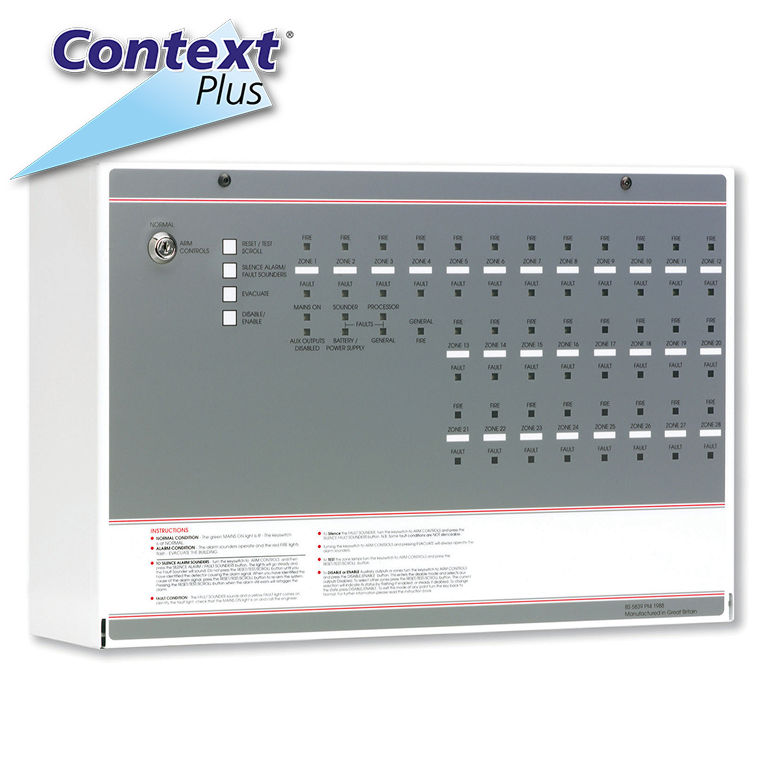

Specifications:
- Mains supply: 230V 50/60Hz.
- Mains rated current: 700mA max.
- Internal power supply: 27V nominal.
- Total output current limited to : 3A @ 230V.
- Quiescent current: 90mA
- Max battery size and type: 2 x 12V 7Ah VRLA connected in series.
- No. of detector zone circuits: 16 (Max. length per circuit is 500m).
Can be extended to 28 zones using FF501Z 4 Zone - extender PCB kits.
- Call point resistor value: 470 to 680Ω.
- Max. devices per detector zone: 20 detectors (max. detector current 2mA).
- No. of conventional sounder circuits: 4 (Max. length per circuit is 500m).
- EOL resistor value: 6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
- Max. sounder output current: 3mA (to all outputs). Outputs are fused at 1A.
- Auxiliary relays : 1 x onboard relay (1A, 30 VDC, follows sounders).
- Open collector outputs: 2 x Fire and 1 x Fault output available via optional FF574X expansion loom. Max. sink current 100mA.
- Auxiliary inputs: Class change input available via optional FF574X expansion loom.
- Indicators: Mains On;
Gen Fire;
Zone Fire;
Zone Fault (S/C, O/C, head out, Zone disabled);
Sndr Fault;
Processor Fault;
Batt/PSU Fault;
Aux O/Ps Disabled;
Fault Sounder (fault, silenced fire and delayed sndrs)
- Controls: External (key operated): Reset/Test Scroll;
Silence Alarm/Fault Sounders;
Evacuate;
Disable. Internal: OMT;
Sounder Walk Test;
Sounder Isolate;
Sounder Delay;
S/C equals fire;
Non-latching zones.
- Product dimensions (mm): 521 W x 334 H x D 140mm.
- Construction & finish: Metal lid and base.
- IP Rating: IP30.
- Weight: 9.5kg.
- Operating conditions/temperature: -5ºC to +40ºC. Max relative humidity: 95%.
