Specifications:

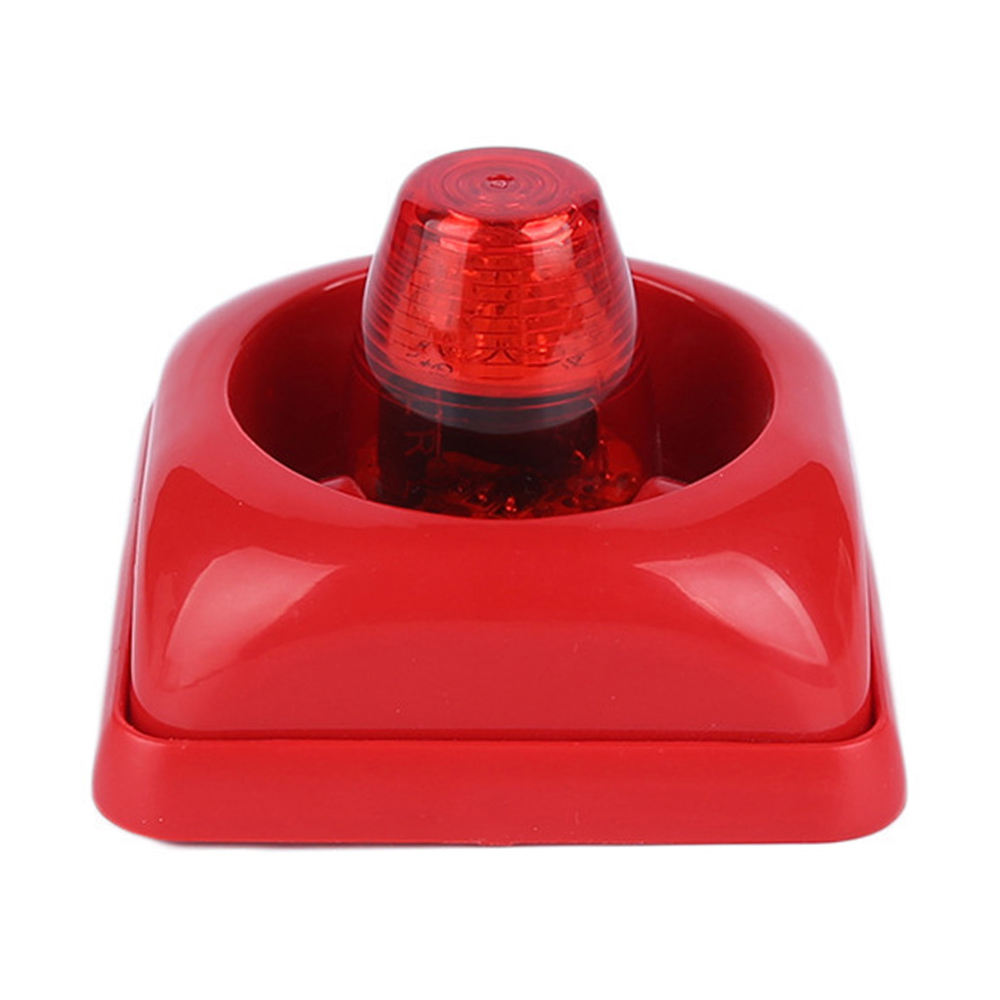

- Product Type: Fire Alarm Sounder with Strobe.
- Model: G3 Plus.
- Working Voltage: DC 10V–24V.
- Operating Current: ≤70 mA.
- Alarm Sound Pressure: ≥95 dB @ 1 m (24V DC).
- Sound Type: Fire Alarm Tone.
- Flash Intensity: ≥75 CD.
- Flash Cycle: < 1 second.
- Flash Lamp Life: > 40,000 flashes.
- Operating Temperature: -10°C to +50°C.
- Humidity: ≤95% RH (Non-condensing).
- Material: ABS Plastic Housing.
- Colour: Red.
- Size: 82 × 82 × 55 mm (L × W × D, with base).
- Net Weight: 75 g.
- Mounting Type: Wall / Ceiling Mount.
- Light Type: LED Strobe (Red).
- Wiring: Two-wire connection.
- Application: Fire Alarm & Emergency Warning Systems.
